IOGEAR 2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio

Product image 1
Product image 2
Product image 3

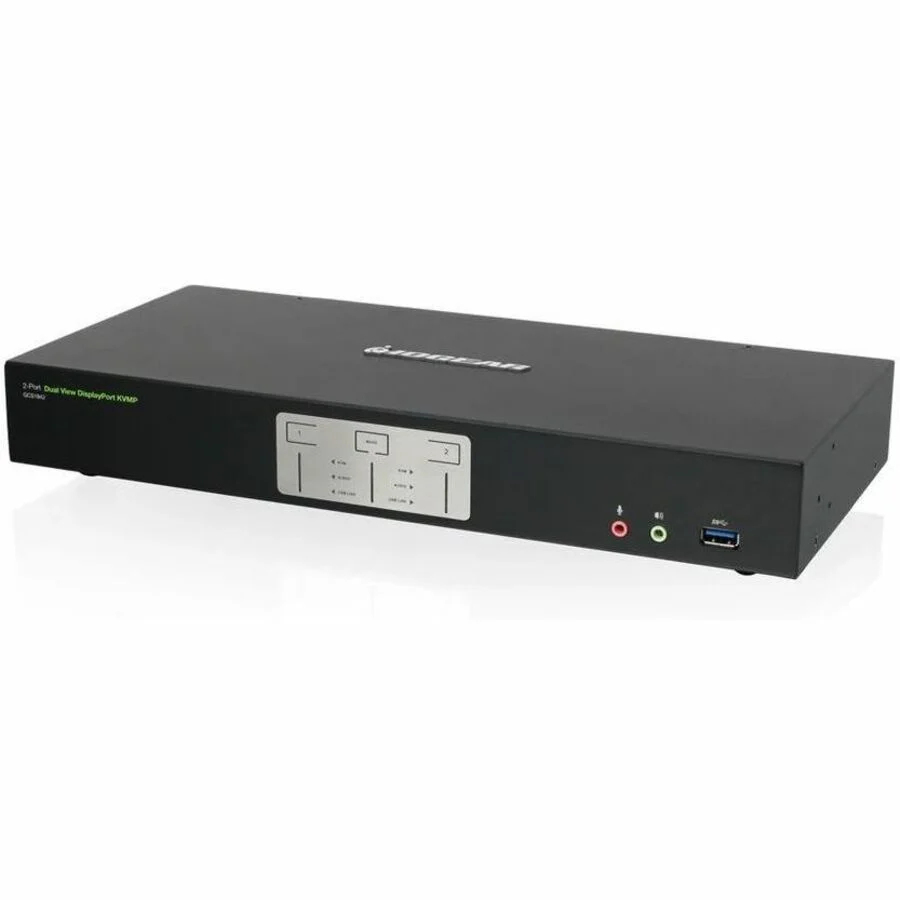

IOGEAR 2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio

Click here for User Manual
General Information
  • Manufacturer: IOGEAR, Inc
  • Manufacturer Part Number: IOG GCS1942
  • Manufacturer Website Address: http://www.iogear.com
  • Brand Name: IOGEAR
  • Product Name: 2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio
  • Marketing Information:

    Dual View for better visual experience

    Connect two Cinema 4K DisplayPort monitors to your desktop or laptop to experience superior screen, image, and video quality. GCS1942 delivers a 4K resolution up to 4096 x 2160 at 60Hz on each monitor. Now the desktop can extend from each connected computer for better viewing and to handles more tasks.

    Built-in USB3.0 peripheral sharing

    Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

    Convenient Switching Methods

    3 ways for GCS1942 Port switching. Hotkeys, pushbuttons on the front panel and mouse wheel button, pick the way best fit for your needs.

    Up to Quad View when daisy-chaining two GCS1942 together


    Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). Expand your workstations to accommodate up to four Cinema 4K DisplayPort monitors.


  • Packaged Quantity: 1
  • Product Type: KVM Switchbox
  • Technical Information
  • Number of Computers Supported: 2
  • Number of Local Users Supported: 1
  • Maximum Data Transfer Rate: 640 MB/s
  • Features: LED Indicator
  • Video
  • Graphic Mode: 4K
  • Maximum Video Resolution: 4096 x 2160
  • Interfaces/Ports
  • Network (RJ-45): Yes
  • USB: Yes
  • USB Standard: USB 3.0
  • DisplayPort: Yes
  • Number of Network (RJ-45) Ports: 1
  • Number of USB Ports: 5
  • Number of DisplayPorts: 6
  • Physical Characteristics
  • Form Factor: Desktop
  • Height: 2.12 (53.85 mm)
  • Width: 13.19 (335.03 mm)
  • Depth: 6.12 (155.45 mm)
  • Weight (Approximate): 3.50 lb (1587.57 g)
  • Miscellaneous
  • Package Contents:
    • 2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio
    • 4 x DisplayPort Cables (5ft.)
    • 2 x USB 3.0 Cables (6ft.)
    • 2 x Audio Cable Set (6ft.)
    • 1 x Power Adapter
    • 1 x Quick Start Guide
    • 1 x Warranty Card
  • Warranty
  • Limited Warranty: 3 Year
