IOGEAR USB-C Travel Dock with Power Delivery 3.0
General Information
Manufacturer: IOGEAR, Inc
Manufacturer Part Number: GUD3C06
Manufacturer Website Address: http://www.iogear.com
Brand Name: IOGEAR
Product Name: USB-C Travel Dock with Power Delivery 3.0
Marketing Information:
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:
Interfaces/Ports
Host Interface: USB 3.1 Type C
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 3
Network (RJ-45): Yes
HDMI: Yes
Thunderbolt: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 2 (50.80 mm)
Depth: 0.35 (8.89 mm)
Length: 4.10 (104.14 mm)
Weight (Approximate): 3.20 oz (90.72 g)
Miscellaneous
Package Contents:
Additional Information:
Environmentally Friendly: Yes
Environmental Compliance:
Country of Origin: Taiwan
Warranty
Limited Warranty: 3 Year

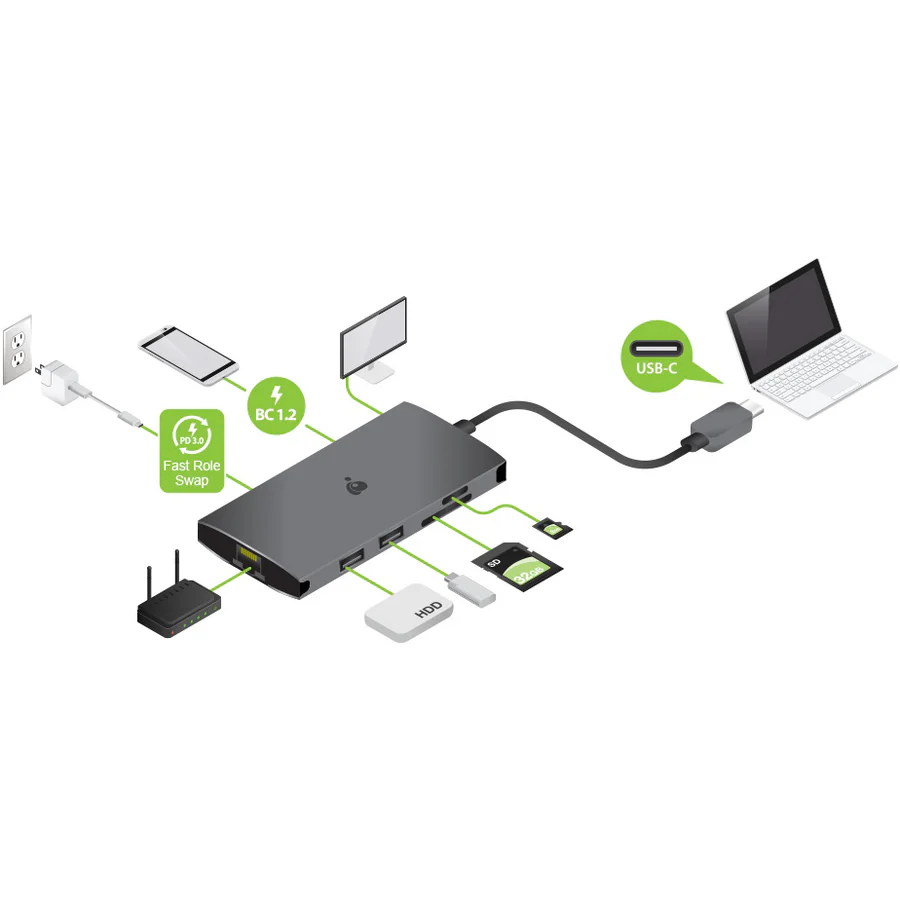

- 8-in-1 Travel-size USB-C docking station for mobile professionals
- Charge laptop & devices with up to 100W pass-through
- Connect an HDMI display and enjoy HD audio and video resolution to 4K
- SD/MicroSD card reader/writer supports memory expansion
- 3x USB 3.0 ports; 1x BC1.2 charging port (1.5A)
- Notebook
- Tablet PC
- USB-C Travel Dock with Power Delivery 3.0
- 1 x Quick Start Guide
- 1 x Warranty Card
- Upstream Port - USB-C : USB 3.1 Gen 1 supports data and Power Delivery 3.0
- Downstream Port - Card Reader : Supports Secure Digital v3.0 UHS-I (Ultra High Speed)?SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
- Downstream Port - Ethernet : Supports 10/100 /1000Mbps
- Downstream Port - HDMI : HDMI 1.4 compliant, resolution up to 4Kx2K @30Hz
- Downstream Port - USB-A : 3x USB 3.0, 1 port supports BC1.2 fast charging
- Downstream Port - USB-C : 1x USB 3.1 supports data transfer or Power Delivery 3.0
- Power - Power Delivery Pass-Thru : PD 3.0 / 100W (A total of up to 85W can be charged to the laptop after deduction of max 15W used by the dock)
- Power - Data Rate : Up to 5Gbps
- Power - Video Resolution : Up to 4K@30Hz, with 16:9 ratio
- Environment - Humidity : 10% to 90 % RH (no condensation)
- Environment - Operation Temperature : 0? to +45?
- Operating System Requirements - Mac : Mac OS X 10.7+
- Operating System Requirements - Windows : Windows 7 / 8 / 8.1 / 10
- Inner Pack - Width : 5.91 (15cm)
- Inner Pack - Height : 6.30 (16cm)
- Inner Pack - Length : 11.41 (29cm)
- Inner Pack - Inner Pack Qty. : 6
- Unit Package Dimensions - Height : 5.71 (14.5cm)
- Unit Package Dimensions - Depth : 1.74 (4.4cm)
- Unit Package Dimensions - Length : 5.31 (13.5cm)
- Master Carton - Width : 13.39 (34cm)
- Master Carton - Height : 12.20 (31cm)
- Master Carton - Depth : 12.6 (32cm)
- Master Carton - Master Carton Qty. : 24
- Weight - Master Carton Wt. : 7 lbs (3.16kg)
- Weight - Inner Pack Wt. : 1.8 lbs (0.82kg)
- Weight - Unit Pack Wt. : 0.3lb (0.14kg)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
$96.00
Original: $320.00
-70%IOGEAR USB-C Travel Dock with Power Delivery 3.0—
$320.00
$96.00Product Information
