ViewSonic Graphic VG3456 34" Class UWQHD LED Monitor - 21:9 - Black

Click here for Informative Product Brochure
Click here for User Manual
General Information

Manufacturer: ViewSonic Corporation

Manufacturer Part Number: VG3456

Manufacturer Website Address: http://www.viewsonic.com

Brand Name: ViewSonic

Product Line: Graphic

Product Series: VG

Product Model: VG3456

Product Name: VG3456 - 34 1440p Ergonomic 21:9 Docking Monitor with USB C and RJ45

Marketing Information: Featuring an ultra-wide 34 screen with a design to boost productivity and maximize output, the ViewSonic^® VG3456 is a docking monitor that transforms your desktop into a streamlined and efficient workspace. With WQHD 3440 x 1440 resolution, the VG3456 delivers 2.4 times more pixels than standard Full HD monitors, giving users more detail for enhanced productivity. A 21:9 aspect ratio and slim bezels provide extra screen real estate so users can display more content, switch between applications more quickly, view documents side by side, and view multiple windows at once. Enjoy reliable and flexible network connectivity with the integrated gigabit Ethernet port while the latest USB Type-C connectivity provides up to 90W power delivery to your laptop. That's not all, the integrated USB hub also provides single-cable simplicity for connecting and charging your peripherals and accessories. In addition, the included vDisplayManager software gives you quick and easy OSD control, as well as customized screen templates for easy multi-tasking. This monitor is also shipped in eco-friendly biodegradable packaging, along with an easy-to-install quick release stand that makes for quick deployment and a lower total cost of ownership.

Product Type: LED Monitor

Technical Information

Number of Screens: 1

Screen Size Class: 34

Viewable Screen Size: 34

Screen Mode: UWQHD

Screen Surface: Anti-glare

Panel Technology: Multi-domain Vertical Alignment (MVA)

Response Time: 25 ms

Response Time Details: 25ms GTG (OD)

Aspect Ratio: 21:9

Horizontal Viewing Angle: 178°

Vertical Viewing Angle: 178°

Backlight Technology: LED

Swivel Angle: 60°

Features:

• Anti-glare
• 3H Surface Hardness

Horizontal Frequency: 15 kHz to 150 kHz

Vertical Frequency: 50 Hz to 60 Hz

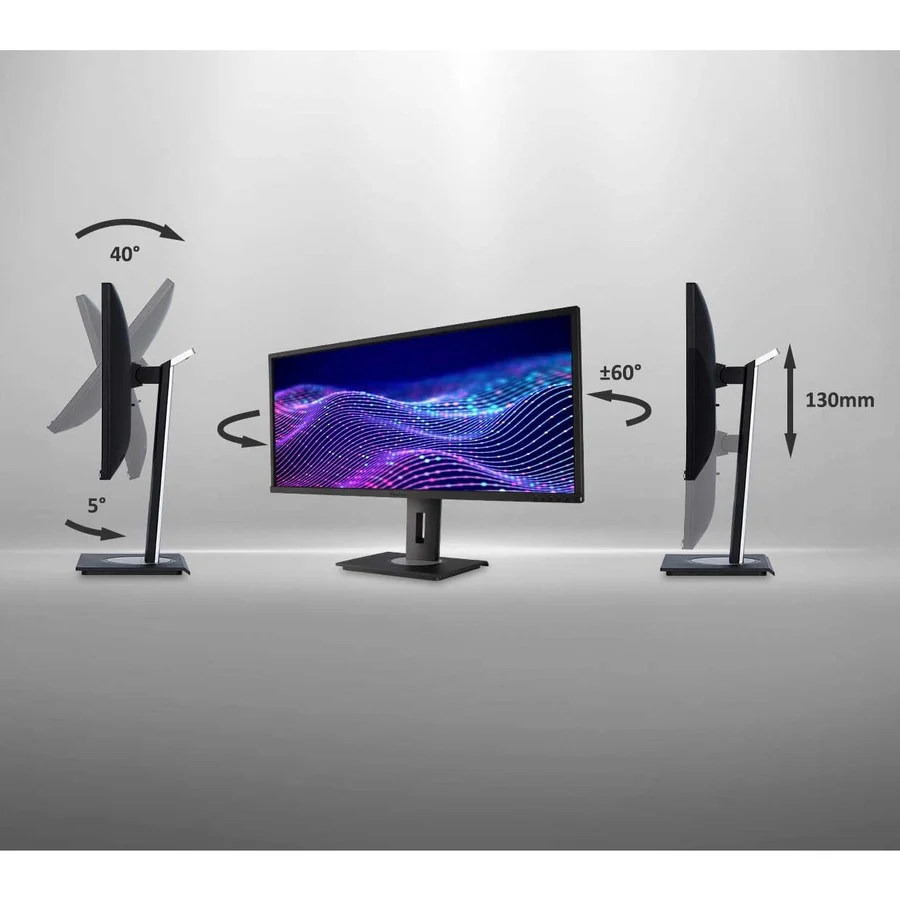

Adjustable Stand: Yes

Stand Adjustments:

• Height
• Swivel
• Tilt

Curved Screen: No

Glass Hardness: 3H

Video

Maximum Resolution: 3440 x 1440

Standard Refresh Rate: 75 Hz

Color Supported: 1.07 Billion Colors

Color Depth: 10-bit

Native Contrast Ratio: 3,000:1

Dynamic Contrast Ratio: 50,000,000:1

Brightness: 300 cd/m²

Tearing Prevention Technology: FreeSync

Audio

Number of Speakers: 2

Speakers: Yes

Speaker Output Power: 3 W

Interfaces/Ports

Network (RJ-45): Yes

HDMI: Yes

HDMI Version: 1.4

USB: Yes

DisplayPort: Yes

Number of HDMI Inputs: 2

Total Number of HDMI Ports: 2

Number of USB Ports: 5

Number of USB 2.0 Ports: 4

Number of USB 3.1 Ports: 1

Number of DisplayPorts: 1

Power Description

Input Voltage Range: 100V to 240V

Operating Power Consumption: 160 W

Standby Power Consumption: 300 mW

Physical Characteristics

VESA Mount Compatible: Yes

VESA Mount Standard: 100 x 100

Color Family: Black

Color: Black

Height: 14.41 (366 mm)

Width: 32.48 (825 mm)

Depth: 2.01 (51 mm)

Height with Stand: 21.17 (537.80 mm)

Width with Stand: 32.48 (825 mm)

Depth with Stand: 9.29 (236 mm)

Weight (Approximate): 29.50 lb (13380.97 g)

Weight with Stand (Approximate): 19.40 lb (8799.69 g)

Miscellaneous

Package Contents:

VG3456 - 34 1440p Ergonomic 21:9 Docking Monitor with USB C and RJ45

Power Cable

HDMI Cable

USB Type C Cable

USB A/B Cable

Quick Start Guide

Certifications & Standards:

cTUVus

FCC-B

ICES003

Energy Star Certified

EPEAT Certified

CEC

MX-CoC

Mexico Energy

Platform Supported:

• PC
• Mac

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Environmental Certification: Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)

Warranty

Limited Warranty: 3 Year
